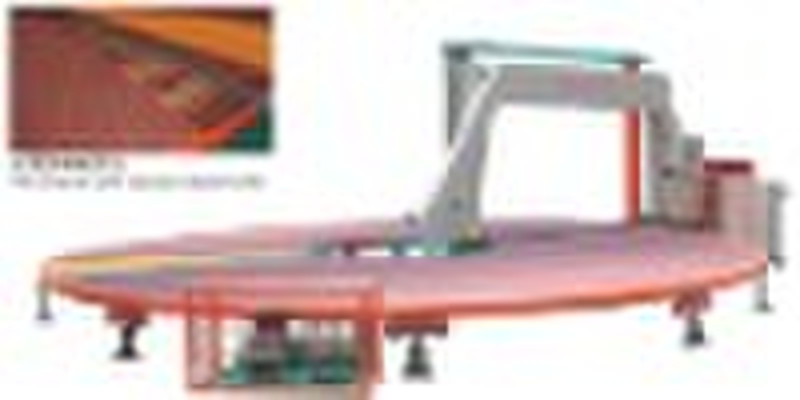

Carrousel Splitting Foam Cutting Machine

Main Usage: This Splitting foam cutting machine adopts the advanced imported controlled techniques drive. This machine is mostly used for much quadrate foam once flatly slicing. It's fully automatic controlled operation and the cutting is better. Meanwhile our latest research to manufacture the huge carrousel splitting machine successfully, which the diameter 10.5 is the biggest in current national. It can be continuously cutting the bigger quadrate foam of W2.15*L4.5m. (This machine chooses with vacuum equipments). Main Technical Specification: Model:HSYQ-60/ HSYQ-70/HSYQ-100 Cutting foam size: W1.5*L2*H1.2m(4pcs)/W1.5*L2*H1.2m(5pcs) /W1.5*L2*H1.2(8pcs) Cutting foam size max: W1.5*L2*H1.2m(4pcs)/W2.15*L3*H 1.2 (3pcs)/ W2.15*L4.5*H1.2(3pcs) Total power:8.12kw/8.92klw/10.52kw. Worktable turning speed: 0 35r/min /0 3.0r/min /0 2.0r/min Blade length: 8940mm/10000m/10240mm Work table diameter:6m/7m/10.5m Cutting thickness: 2 150mm Machine weight:3300kg/3500kg/3800kg Machine external size(LWH): L6.9*W6.0*H2.4m/L7.9*W7.0*H2.4/L11.5*W1.1*H2*4m Remark: The above date of only for reference, all the parameter is subjected to sell the production.
