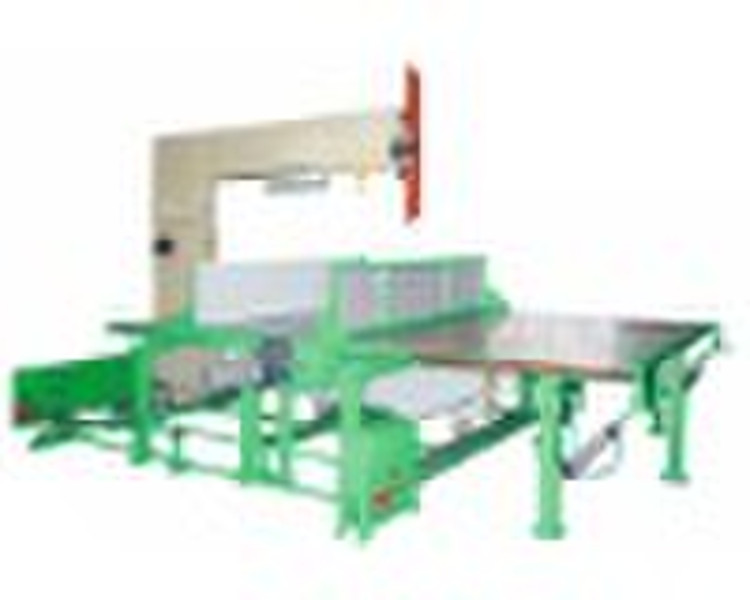

Automatic Vertical Foam Cutting Machine

Main Usage: This Automatic Vertical Foam Cutting machine adopts operating forms of tool carriage moving and fixed worktable. The nubby foam is placed in the middle of baffles; the movable cutting carriage reciprocates on slide way with metal band, and then finishes upright's slicing of foam rubber. This machine may synchronously manufacture all kinds of EVA and pearl rubber. It adopts frequency conversion timing auto-controlled system. Its automatization level is high, the cutting is exact, the operation is safety and it can reduce the using space etc. Main Technical Specification: Cutting length:L9720mm Available cutting stroke:2200mm Baffle distance:2050mm Cutting thickness scope:3 100mm Total power:7.09kw Available cutting height:1100mm Baffle treading speed:0 10m/min Blade Frame moving speed:0 20m/min Inner worktable size ( W x L):W2150*L2440mm Outer worktable size ( W x L):W2150*L2240mm Machine external size max(L x W x H):L3700*W5700*H2290mm Remark: The above date of only for reference, all the parameter is subjected to sell the production
